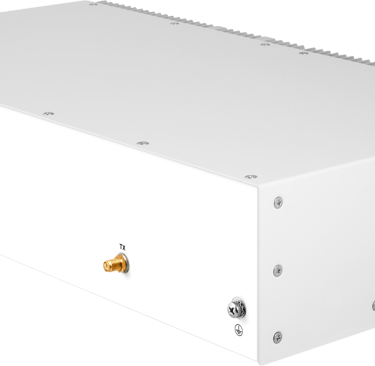

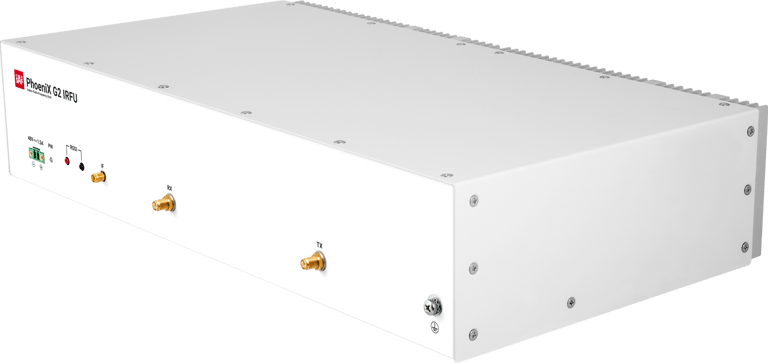

Overview - PhoeniX G2 IRFU

PhoeniX Series split mount system is designed to fit in a classic telecom architecture with a radio located outdoors and a sheltered indoor unit. Supporting channel bandwidths of up to 60 MHz, the PhoeniX Series offers capacities of up to 1 Gbps in 2+0 configurations

Get A Quote

Highlights And Specifications

High Capacity Throughput

Market-proven technology supporting 1024 QAM modulation and 60 MHz channel bandwidth ensures a high throughput capacity of up to 452 Mbps per radio.

Enhanced Ethernet functionality

Built-in managed Gigabit Ethernet switch supports QoS, VLANs with QinQ, IEEE 1588v2, AES256-bit over-the-air encryption and other essential features which allow to setup and maintain highly customized end-user connectivity services.

Flexible network configuration

With a single IDU supporting either one or two ODUs, it is possible to use 1+0, 2+0 (with Layer 1 aggregation), 1+1 link protection in HSB/FD/SD, as well as 2+0 XPIC configurations without the need for a second indoor unit.

Excellent for network upgrade

Flexible TDM/IP architecture allows easy transition from TDM-only to hybrid or IP-only network using single highly adjustable PhoeniX Series device and upgrade with additional modules transporting up to 64xE1 or 16xASI streams.
