NAVITEK IE – PROFINET TESTER

PROFINET tester NaviTEK IE is used for commissioning, preventative maintenance and troubleshooting of industrial Ethernet networks, as well as standard Ethernet IP networks.

• Pinpoint PROFINET cable faults (RJ45, M12, Fibre)

• Easily configure nodes

• Prevent network failures with the health check

• Locate hard to find devices using the device blink

• Find mis-configured devices using the NetMAP tool

• Find rogue devices using the 48 hour event log

OVERVIEW

NAVITEK IE – PROFINET TESTER

The NaviTEK IE is a tester for commissioning, preventative maintenance and troubleshooting of PROFINET Industrial Ethernet networks as well as standard Ethernet IP networks.

Designed to simplify the process, the NaviTEK IE identifies network nodes and configuration without requiring a PC and speciality software. An easy to understand system health check pinpoints potential issues before they become network failures. Automatically discover cable, network or device configuration/faults with the touch of a button.

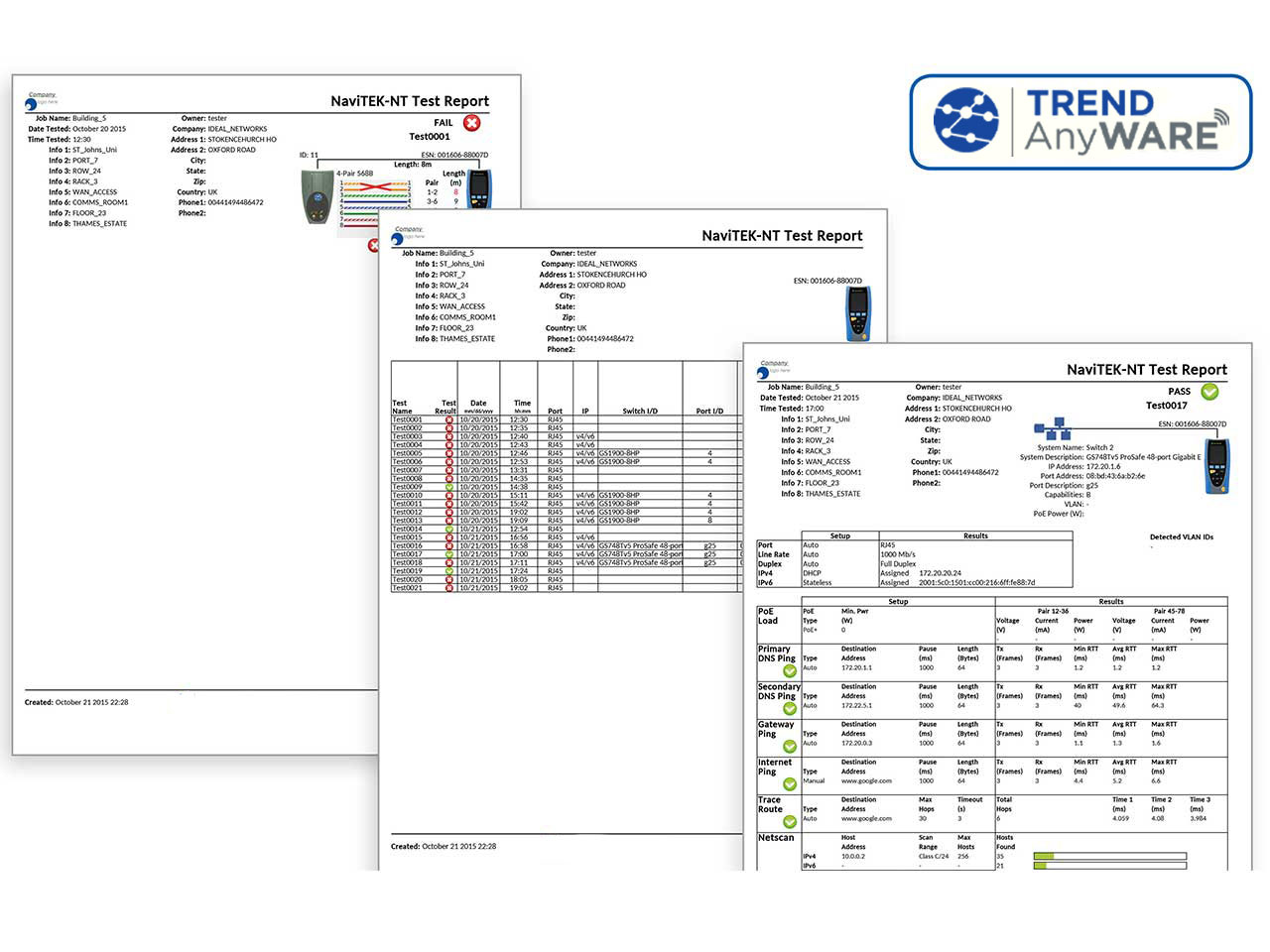

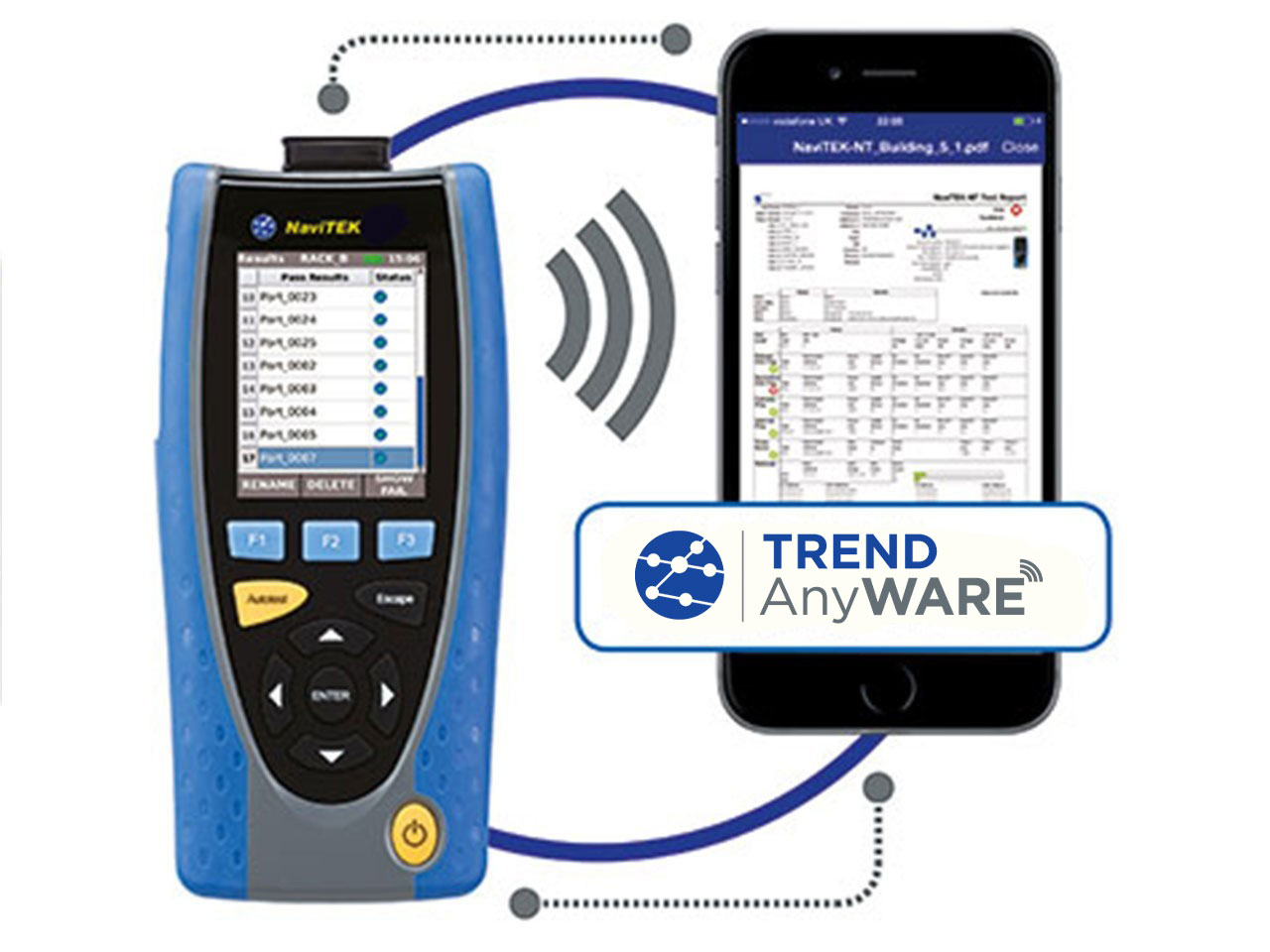

To prove the network has been commissioned successfully, NaviTEK IE provides professional PDF reports that can be shared with colleagues and clients using the free TREND AnyWare™ mobile app.

Click here for the TREND AnyWARE app.

Pinpoint Cable Faults and Minimise Downtime
One of the main causes to network downtime is caused by cable faults. The NaviTEK IE has a series of advanced wiremap tools for PROFINET and standard Ethernet IP network cabling:

Copper Cabling
Using the RJ45 or M12 interfaces the NaviTEK IE offers a wiremap specifically designed for PROFINET Industrial Ethernet networks and Standard Ethernet networks.

• Displays the correct wiring colours for the protocol used
• Supported cable types – 4 twisted wires / 2 twisted pairs / 4 twisted pairs
• Measures the cable length
• Determine where and what the cable fault is including split pairs/opens/shorts/miswires.

Fibre Cabling
Using the optional SFP module the NaviTEK IE will test your fibre data cabling.

• Measures the optical RX power received to prove performance with supported SFPs
• Discover cable faults ie dirty connectors, breaks and bends that exceed specified loss limits
