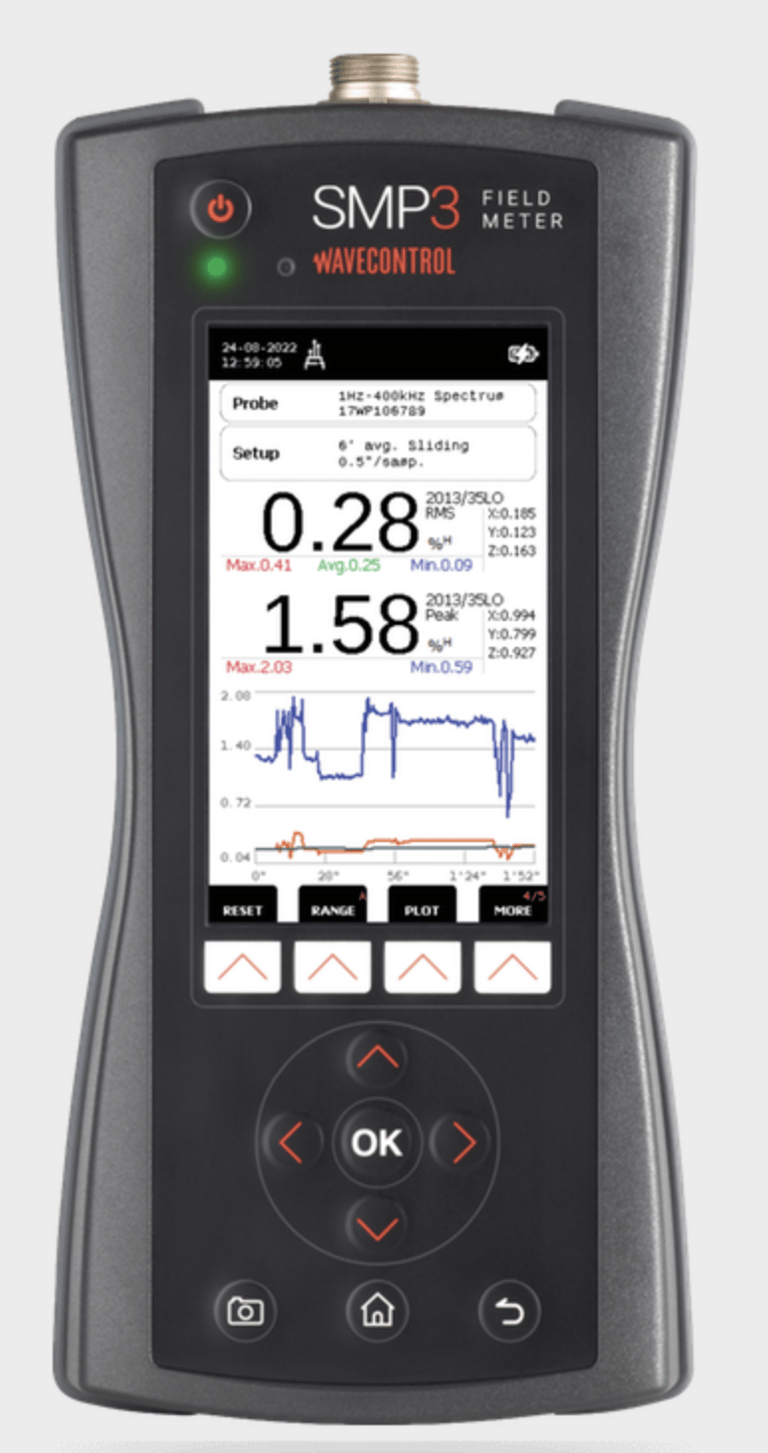

SMP3

3-IN-1 FIELD METER

The only device that offers genuine 3-in-1 functionalities: broadband measurements (DC to 60 GHz), frequency spectrum analysis (DC to 10 MHz) and static field measurements.

The SMP3 field meter provides the most advanced features and technology on the market, designed for users who need high-quality measurements, ease of use and good reporting tools.

EMF Measuring System for Automotive Standards

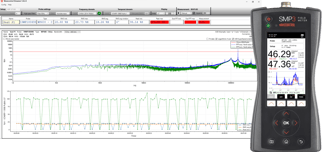

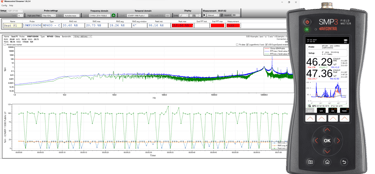

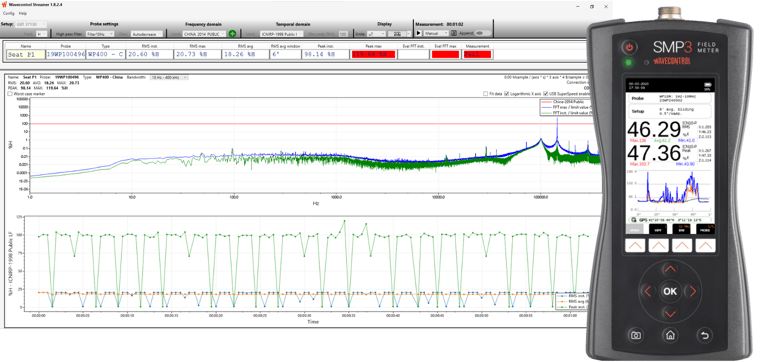

SMP3-Streamer

The measurement of ElectroMagnetic Fields for human exposure is becoming increasingly important, especially with the introduction of electric vehicles and increase of electronics devices inside. These measurements are essential to assure safety against human exposure to ElectroMagnetic Fields (EMF).

Our new SMP3-Streamer solution is a real-time electromagnetic field measuring system according to newer automotive test requirements about human exposure to electromagnetic fields, like GB/T 37130, MBN 10284-2, TSC 7048G and many others. Click below for more information

SMP3 FEATURES

• 3-in-1 Field Meter: spectrum analysis (DC – 10 Mhz), broadband (DC - 60 GHz) and static field measurements.


• Real-time FFT-based spectrum analysis using digital processing.


• Weighted Peak Method (WPM) for automatic and real time comparison with limits.


• Special auto-gain function for peak detection (indispensable for procedures such as welding).


• Display of results in RMS and peak values.


• Function for time domain measurement of a specific frequency.

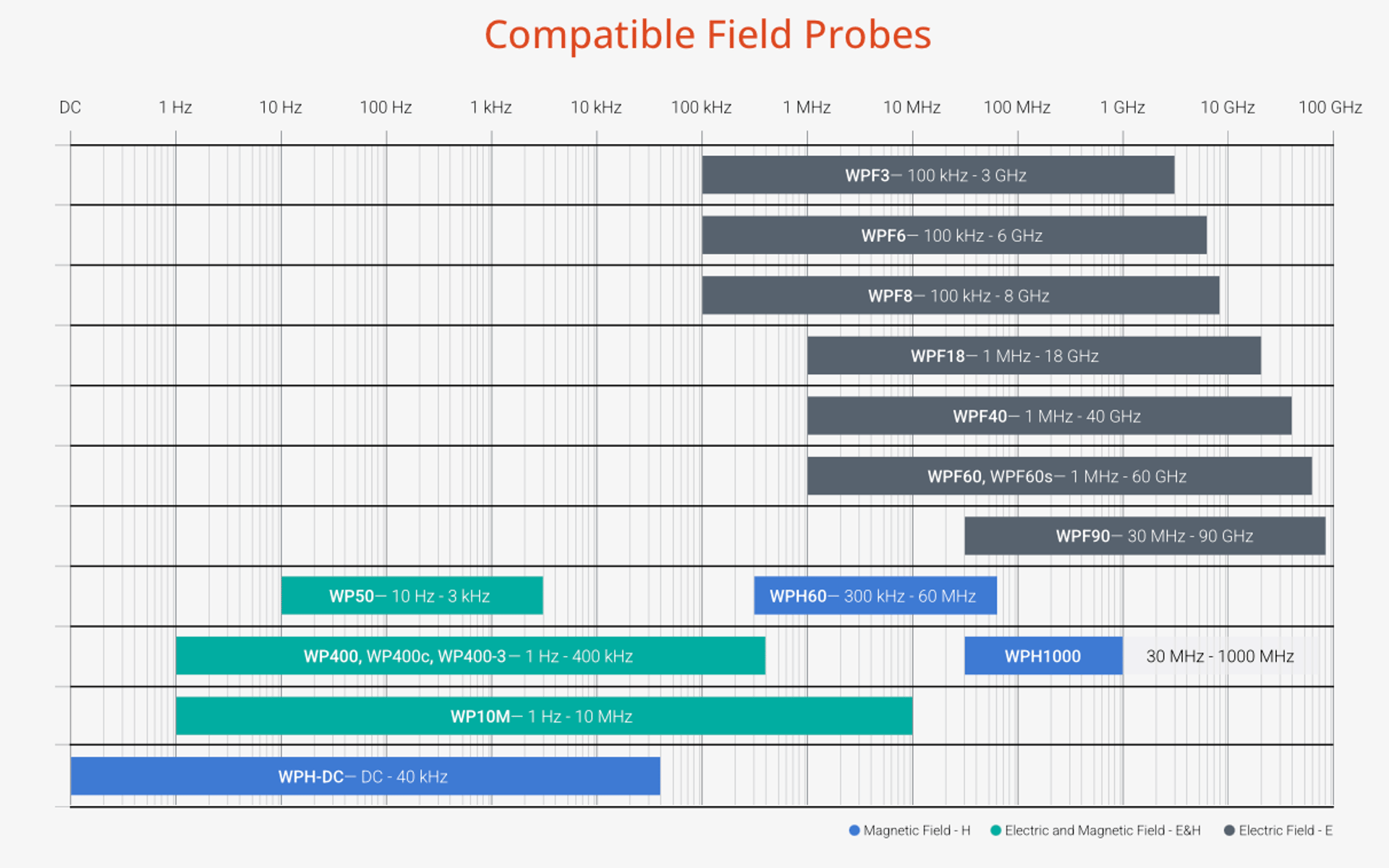

• Automatic field probe recognition.


• E&H field selection.


• Total field value and value for each component (X, Y, Z).


• Frequency SPAN selection.


• High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.


• Max-hold function.


• Display of maximum, minimum and average values.


  ...and much more
